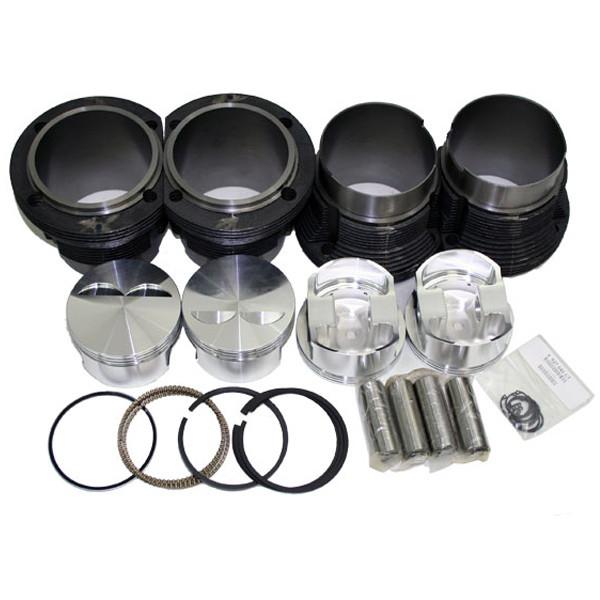

Forged JE 103mm 2.0 Porsche 914/ VW Type 4 Piston and Liner kit

This is a new set of VW Type 4 103mm flat top JE Pistons and cylinders. JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.3L and bigger Engines.This is a Machine in kit you will need to open both the Heads and Case to install them.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Engine size:2365cc with 71mm crank

Stroke:71 to 78mm

Cylinders: Cast Iron

Pistons:Forged JE

Compression Height:34.60mm

Valve Pocket CC:-0.9

Pin: 24mm

Set includes: 4 pistons, 4 cylinders, 4 pins, and a set of rings

Part #VW103T4JE

***Machine work required***
