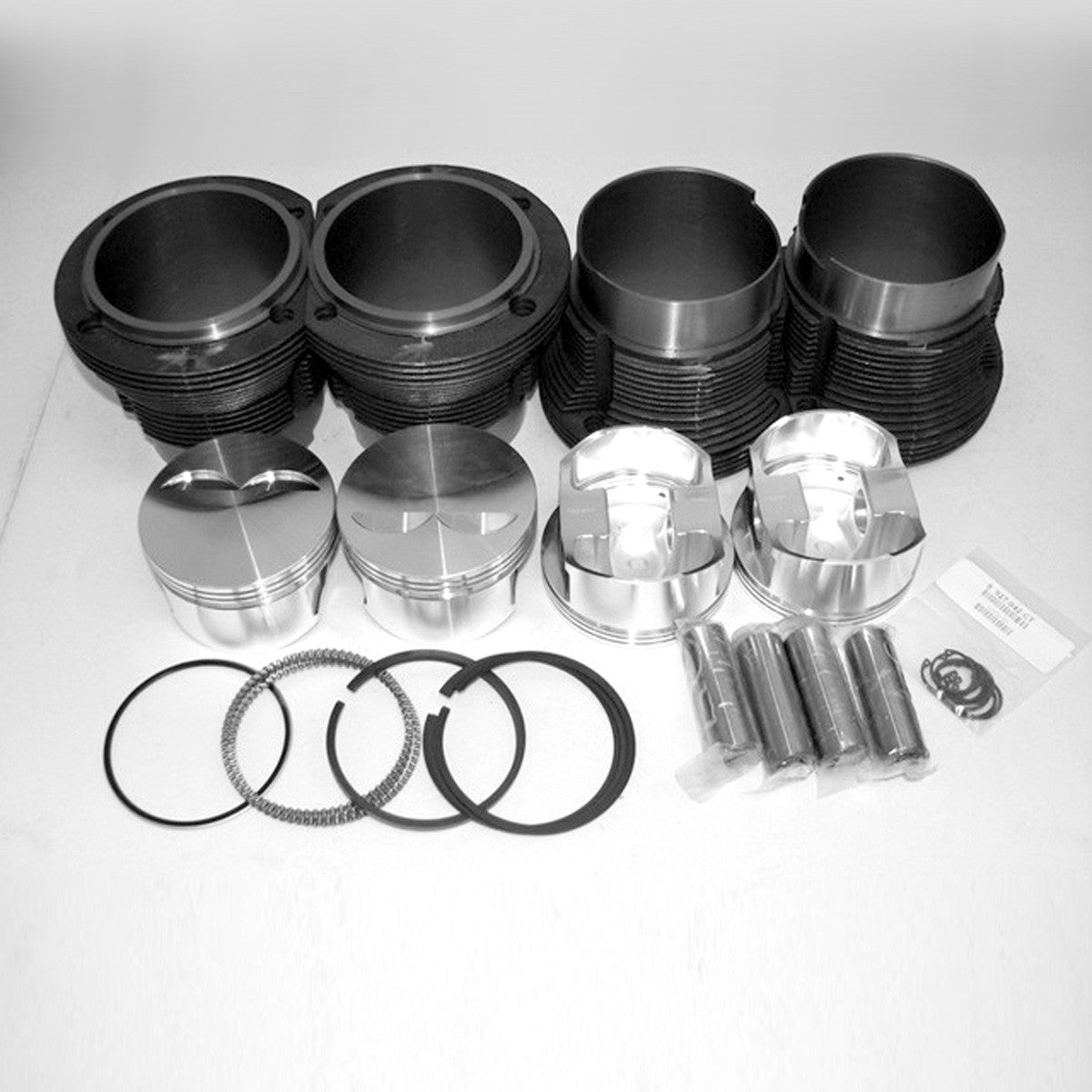

Forged JE 96mm 2.0 Porsche 914/ VW Type 4 Piston and Liner kit

This is a new set of VW Type 4 2.0 liter 96mm flat top JE Pistons and cylinders. JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins. It is a Slip in kit no machinework is needed.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Engine size:2000cc

Stroke:71 to 78mm

Cylinders: Cast Iron

Pistons:Forged JE

Compression Height:34.60mm

Pin: 24mm

Set includes: 4 pistons, 4 cylinders, 4 pins, and a set of rings

Part #VW9600T4JE
