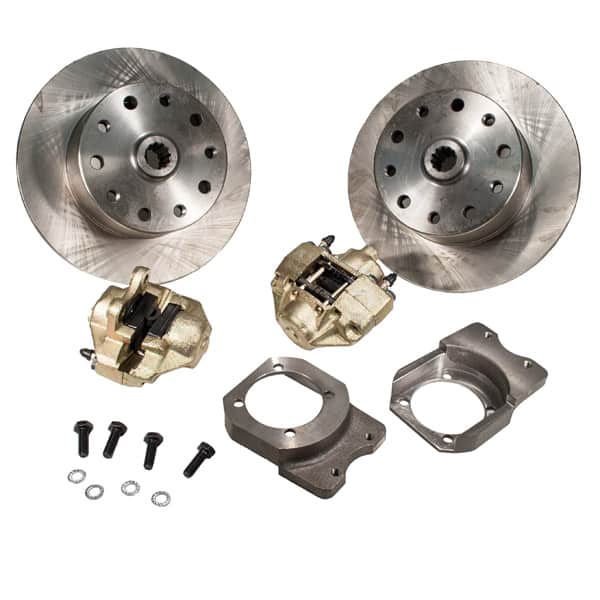

Disc Brake Kit, Rear, Non e-Brake, 5-Lug (Porsche Pattern - 5x130 for Studs or Threaded)

Short Spline Axle Rear Disc Kit, without e-Brake. Nodular iron bracket will not bend and keep proper alignment of caliper to the rotor.

Kit includes:
(2) Rotors with 5-Lug Dual Pattern - 5 x 112mm & 5 x 130mm (Porsche & Bus) drilled and tapped for 14mm screw in wheel studs (available separately)
(2) Calipers
(2) Caliper mounting brackets
(4) Brake pads #D101
(2) Seal kit
Mounting hardware
Installation Instructions

Note: Will Fit '67 with Short Spline Axle ONLY!

Note: Requires two 25" long metal brake lines part #113611764B

Stud Installation Note: These drums/rotors are drilled & tapped with a 14mm x 1.5mm threaded holes. If you chose to use a lug bolt, test fit the wheel to the rotor/drum before installation to confirm that the lug bolt doesn't protrude past the inside of the rotor/drum and hit other components. Check with the wheel manufacture or your installer to find out what stud is right for you.

Screw in Wheel Studs:
Wheel Stud, 14mm x 1/2", part #601102
Wheel Stud, 14mm x 12 mm, part #601115
Wheel Stud, 14mm x 14mm, 1 1/2" long, part #601111
Wheel Stud 14mm x 14mm, 1 3/4" long, part #601120
Wheel Stud, 14mm x 14mm, 2 1/2" long, part #601121
