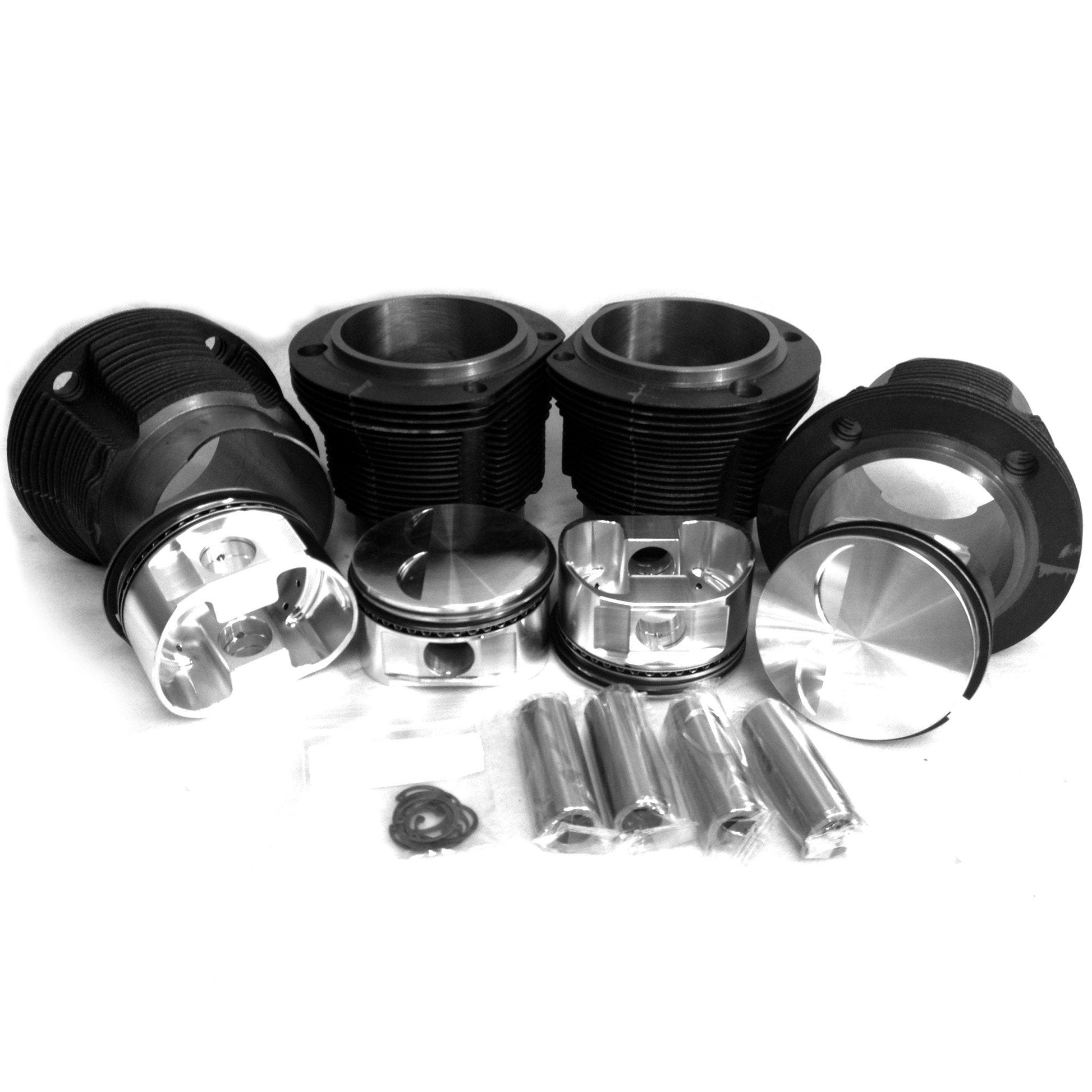

96mm Stroker P&C Kit w/JE Forged Piston

This is a new set of Type 4 2.0 liter 96mm flat top JE Pistons and Cylinders. JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins. It is a Slip in kit no machine work is needed.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Engine size:2000cc

Stroke:78 to 86mm

Cylinders:cast iron

Pistons:Forged JE

Compression Height:30.08mm

Valve Pocket CC:-0.9

Pin: 22mm

Set includes: 4 pistons, 4 cylinders, 4 pins, and a set of rings

Part #VW9600T4S JE
