94x82mm Forged Icon P&L Kit W/ Long Cylinder

This is a new set of Stroker 94mm Forged Icon Pistons & AA Long Cylinders for the Type1

• Compression height - 1.378"
• Pin 22mm x (2.500)
• Pin offset
• Wire-locks RRN-86
• Rings 1.5x1.5x4.0
• High-Silicone 4032 Alloy
• Crown Flat Top
• Crown cc's (0)
• Min. Clearance .0025"

The AA Long cylindersare 23.5mm longer than STDcylinders, designed to be "cut to fit" for the engine builder that wants to get exact deck heights without having to shim the engine.Thiskit does requiremachine workon the cylinder heads and case; Fits 94 Case, 94 Heads.

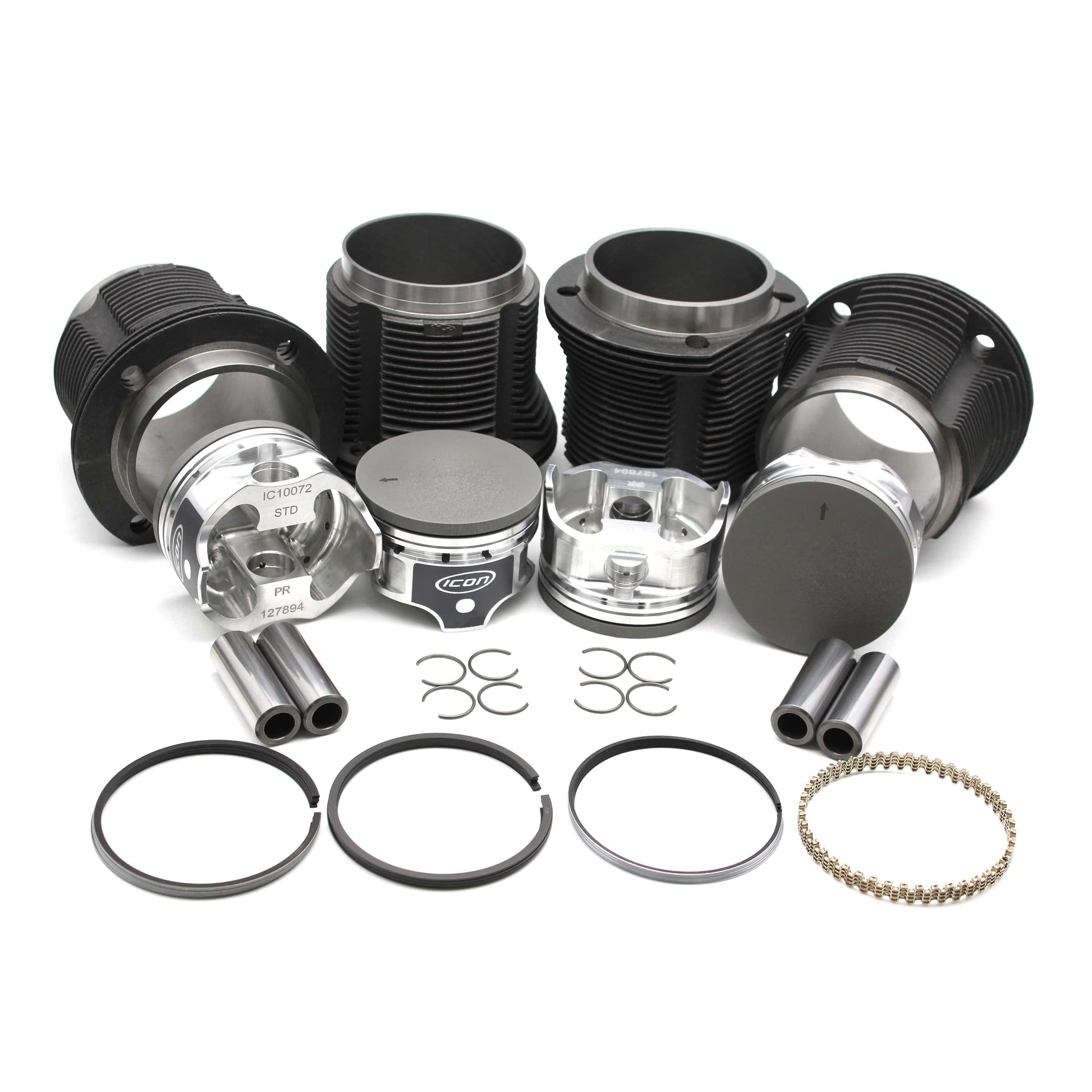

Kit includes: 4 Pistons, 4 Long Cylinders, Piston Rings, and 4 wrist pins and clips.

Part #: VW9400T1SL IC

NO EXTRA MATERIAL FOR VALVE POCKETS
