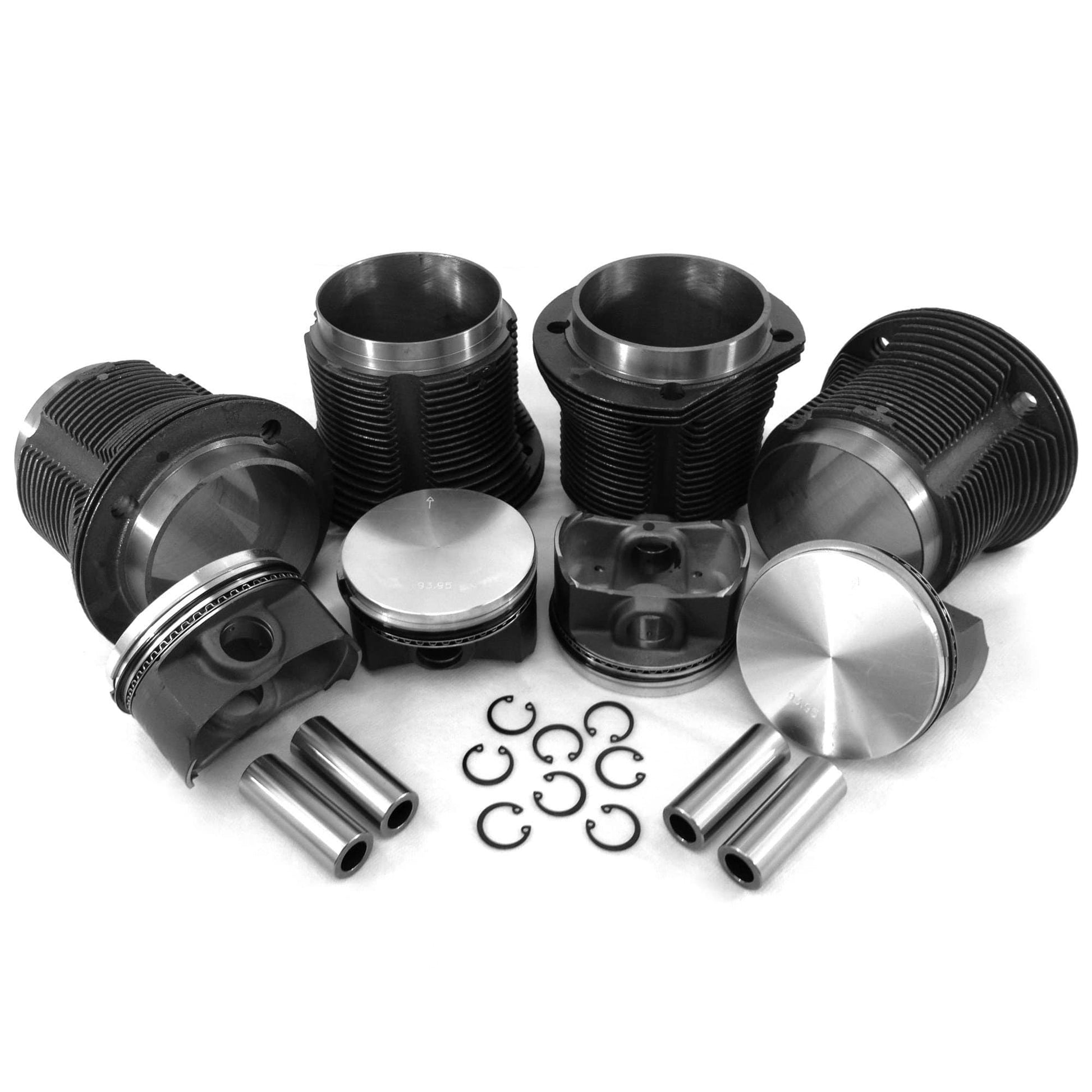

VW 94 x 82mm 2276cc Piston & Cylinder Kit

This is a new set of 94mm VW air-cooled Type 1 pistons and cylinders. This kit requires machine work on the cylinder heads and case. Fits 94 case and 94 heads. The 35mm compression height will work with larger stroked cranks 78, 80, 82, 84, and 86.

Engine size: 2276cc with 82mm crank

Stroke: 78 to 86mm

Cylinders: Cast iron

Pistons: Hypereutectic

Compression Height: ;35mm

Kit includes: 4 cylinders, 4 pistons, 1 set of piston rings, 4 pins, and clips.

Part#: VW9400T1S

**Machine Work Required**
