92x82mm Icon Forged Piston And Cylinder Kit For 94mm Case *M*

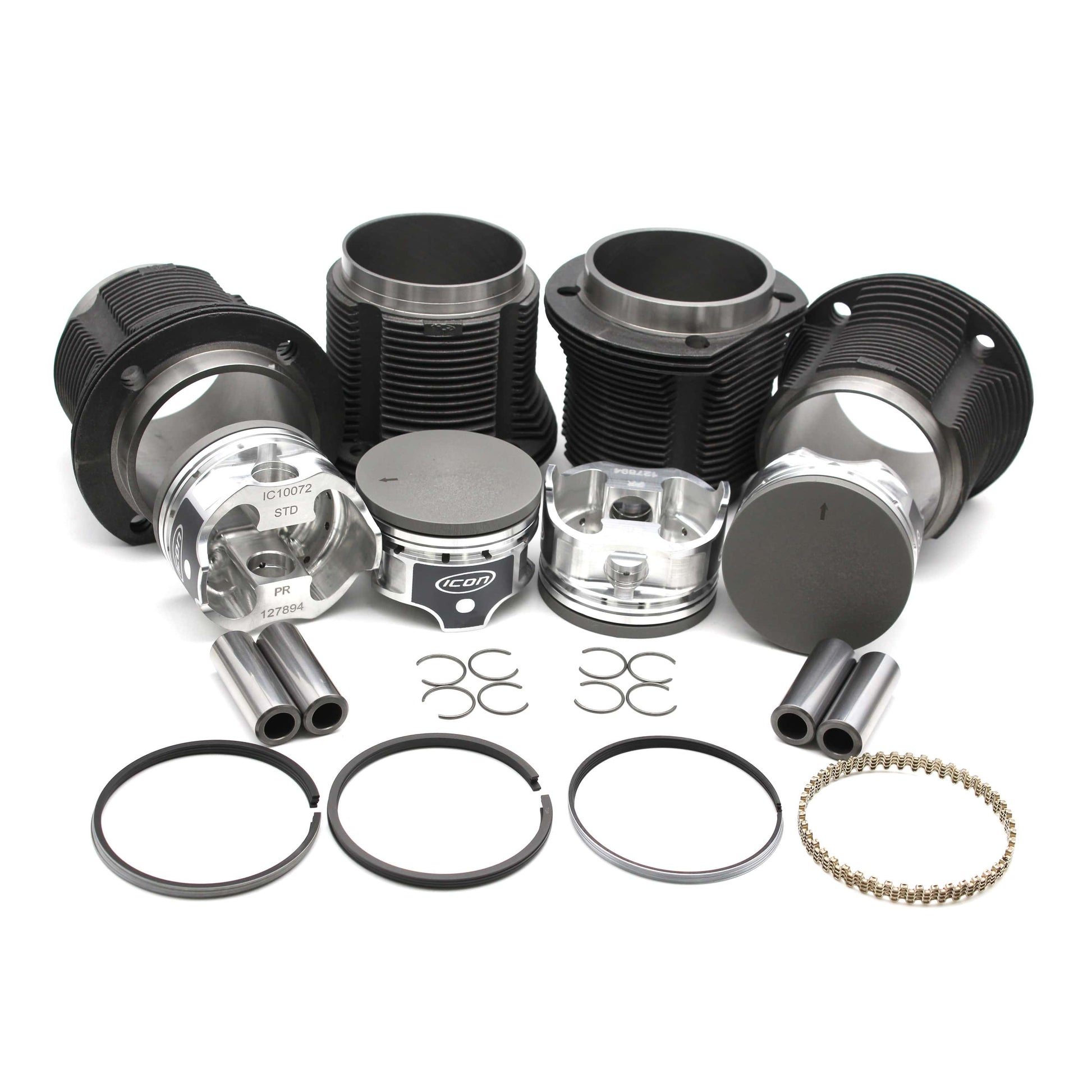

This is a new set of Stroker 92mm Forged Icon Pistons And Cylinders for the Type 1.

• Compression height - 1.338"
• Pin 22mm x (2.500)
• Pin offset
• Wire-locks RRN-86
• Rings 1.5x1.5x4.0
• High-Silicone 4032 Alloy
• Crown Flat Top
• Crown cc's (0)
• Min. Clearance .0025"
• Thickwall Liners

This kit requires machine work on the cylinder heads and case. Fits 94 case and 94 heads. These cylinders are a full 2mm thicker than a standard 92mm cylinder. Perfect for those who want the best in terms of cooling or strength for high-performance applications.

Kit includes: 4 Pistons, Piston Rings, and 4 wrist pins and clips.

Part #: VW9200T1MS IC

NO EXTRA MATERIAL FOR VALVE POCKETS
