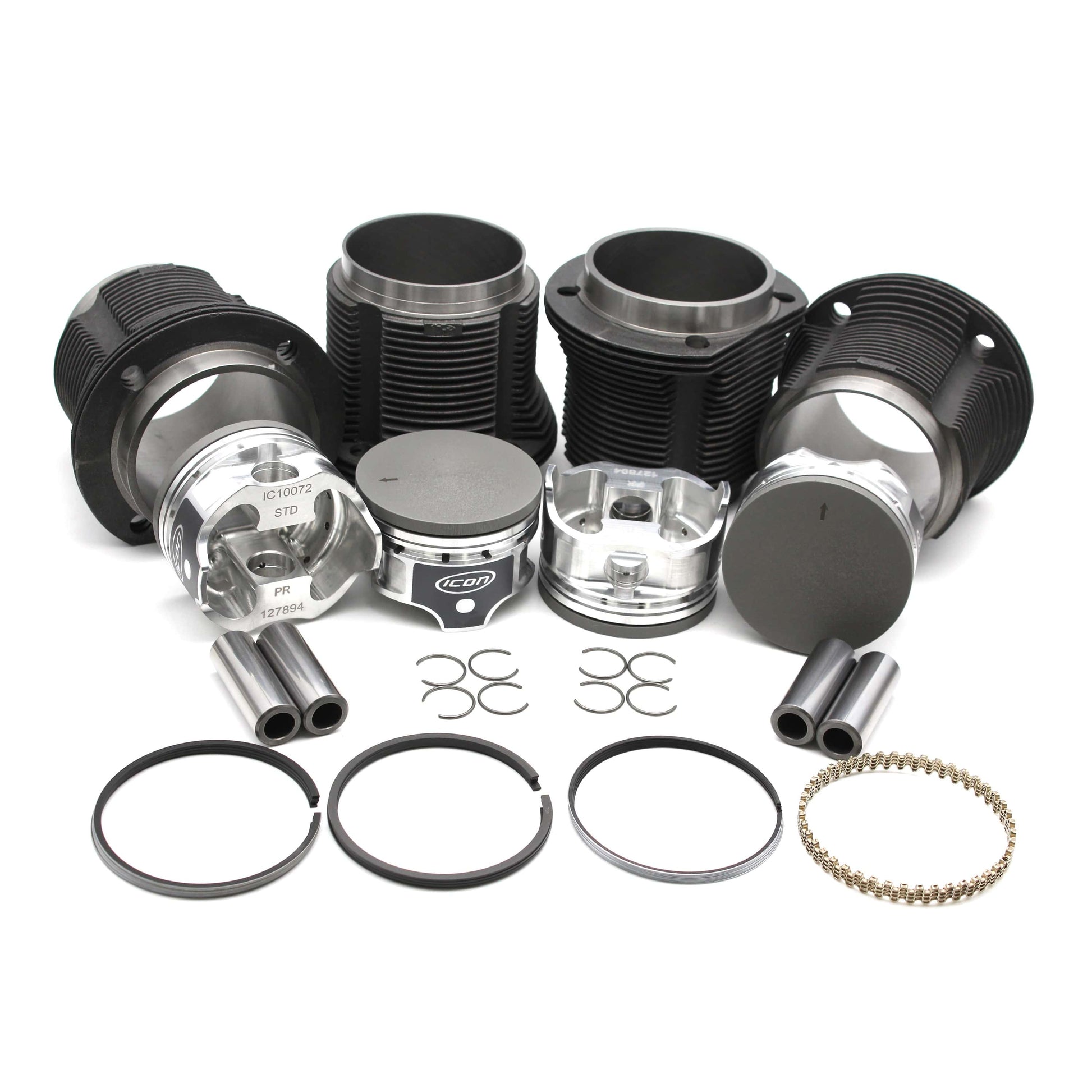

92x69mm Icon Forged Piston And Cylinder Kit, 92 Case, 94 Head "K"

This is a new set of 92mm Forged Icon Pistons And AA Cylinders for the Type 1

• Compression height - 1.559
• Pin 22mm x (2.500)
• Pin offset
• Wire-locks RRN-86
• Rings 1.5x1.5x4.0
• High-Silicone 4032 Alloy
• Crown Flat Top
• Crown cc's (0)
• Min. Clearance .0025"
• Thickwall Cylinders

This kit requires machine work on the cylinder heads and case. Fits 92mm case and 94mm heads. Thicker cylinders, perfect for those who want the best in terms of cooling or strength for high-performance applications.

Kit includes: 4 Pistons, Piston Rings, and 4 wrist pins and clips.

Part #: VW9200T1K IC

NO EXTRA MATERIAL FOR VALVE POCKETS
