VW 90.5 x 69mm 1776cc Piston & Cylinder Kit

This is a new set of 90.5mm VW Aircooled Type 1 pistons and cylinders. This kit requires machine work on the cylinder heads and case. Fits 90.5/92 case and 90.5/92 heads. The 39.8mm compression height will work with small stroked cranks 69, 74, and 76.

Engine size: 1776cc with 69mm crank

Stroke: 69 to 76mm

Cylinders: Cast iron

Pistons: Hypereutectic

Compression Height: 39.80mm

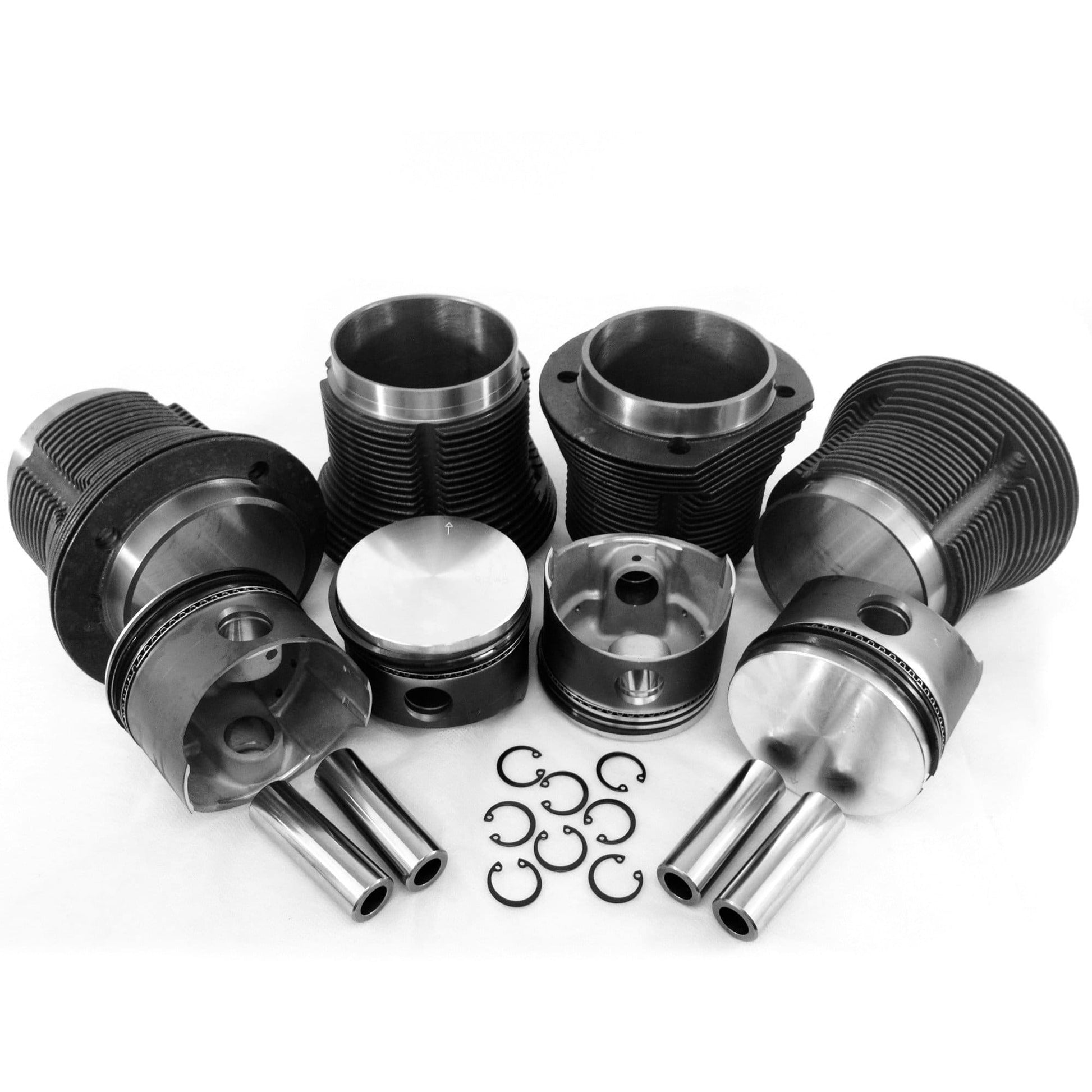

Kit includes: 4 cylinders, 4 pistons, 1 set of piston rings, 4 pins, and clips.

Part # VW9050T1

**Machine Work Required**
