Description

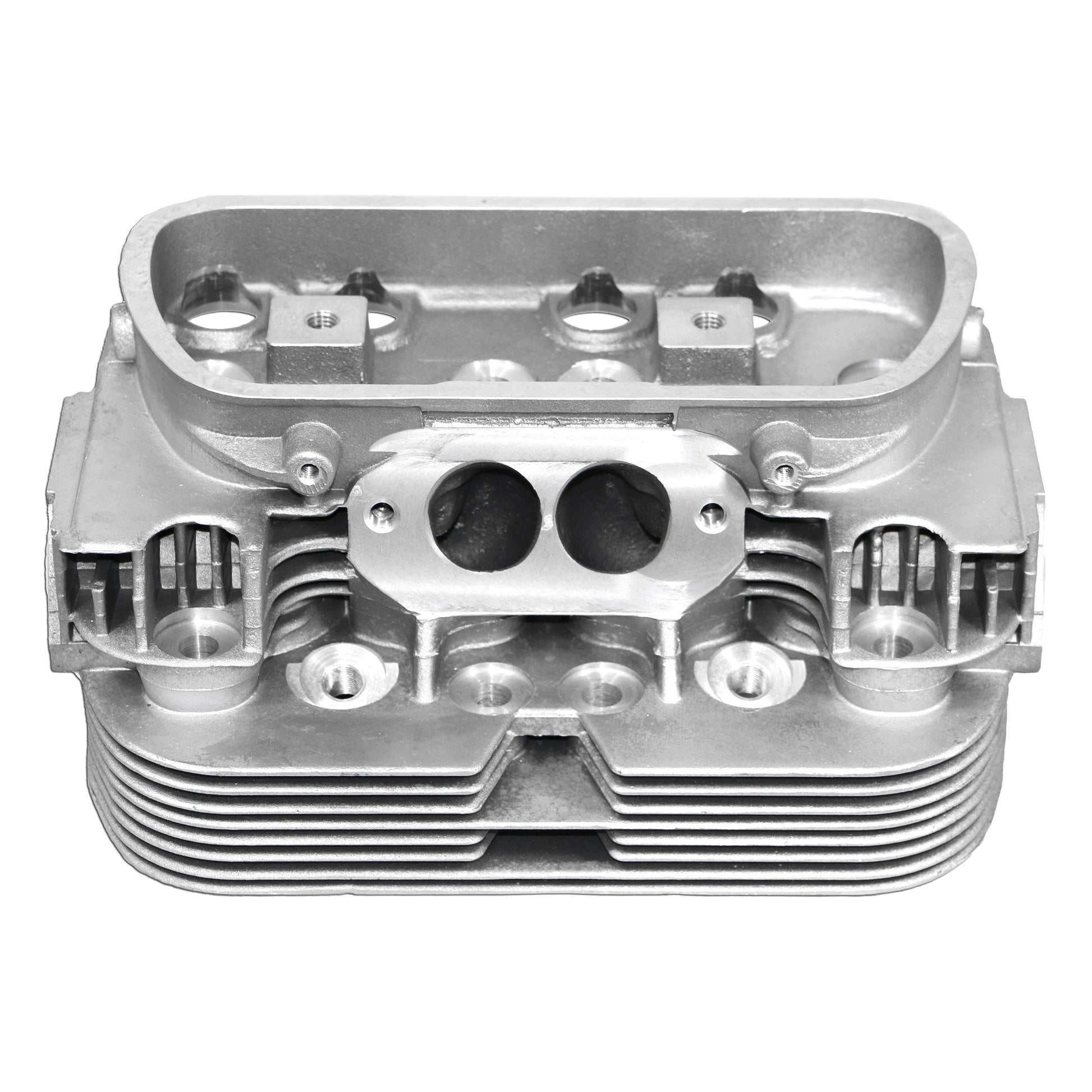

Made from an AA 501 Series Casting, It is set up to build the performance Head of your needs. It comes with Seats 40x35.5, Guides, with a 12mm plug hole.
The 501 Series Castings come STD with: Increased material at the intake surface giving you the ability to make much bigger ports. A modernized Combustion chamber, for increased head flow & performance. A second Full Fin, so you can Fly cut your heads deeper to achieve almost any desired Head CC volume needed. Blocked off rocker stud bosses, to eliminate the O-ring and stop possible oil leaks. Long reach 3/4 Inch Spark Plugs, to reduce the chance of cracking between the Valve seat and Plug.
Casting: AA 501
Valve Size: 40x35.5
Head Bore: 85.5
Plug Size: 12mm (Replacement NGK Number is D8EA)
Head CC's: 55
