103mm JE Forged Piston 22mm Pin Stroker

This is a new set of Type 4 103mm flat top JE Pistons and Cylinders. JE Forgings are made from 2618 Aluminum, They have a 0 offset with extra material under the top for the valve pockets. This set comes with a 30.08mm Compression Height with a 22mm Pin. The smaller compression height allows you to build large stroked engines 78 to 86mm using longer rods that have the 22mm pins giving you the option to Build 2.3L and bigger Engines.

Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.

Engine size:2865cc with 86mm Crank

Stroke:78 to 86mm

Pistons:Forged JE

Compression Height:30.08mm

Valve Pocket CC:-0.9

Pin: 22mm

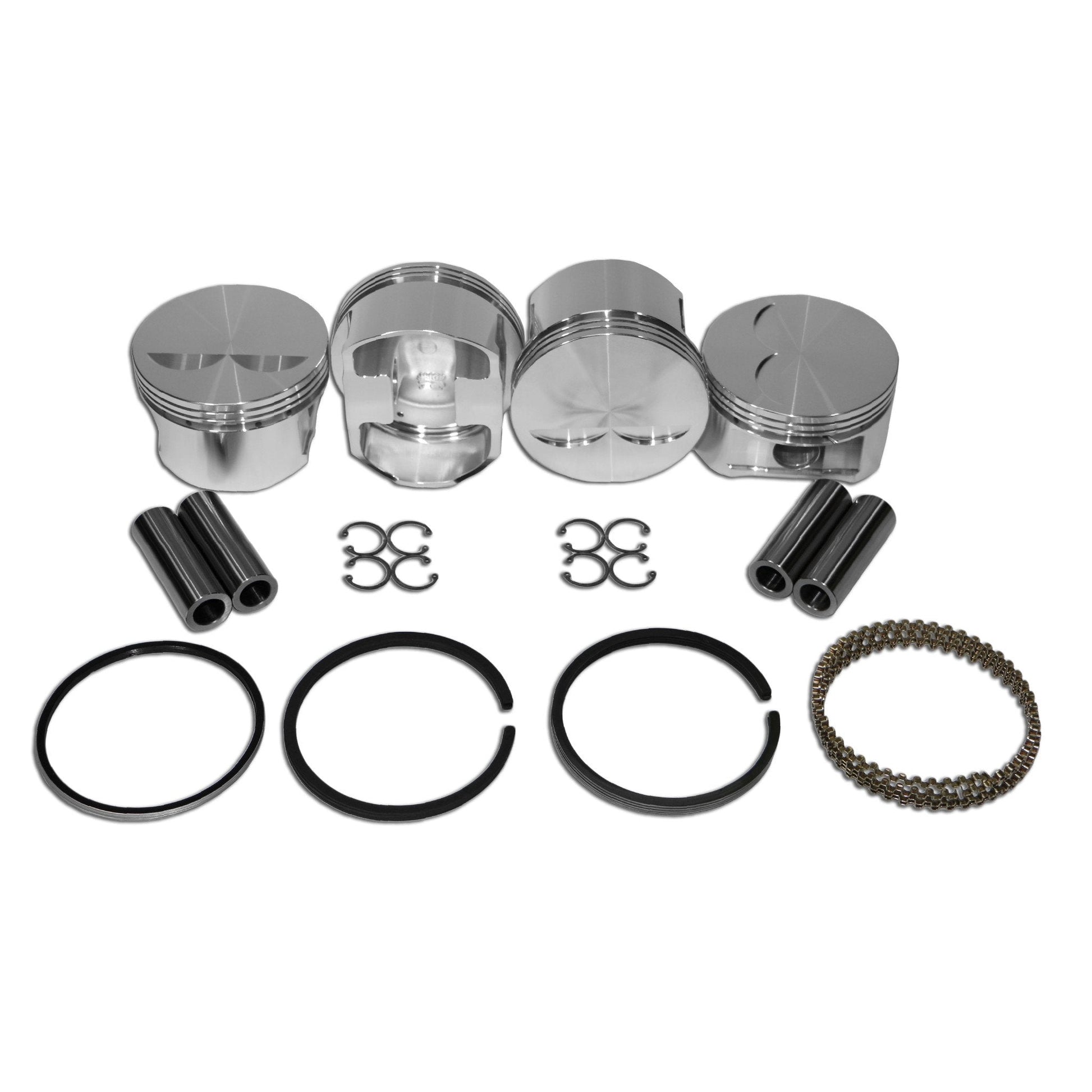

Set includes: 4 pistons, 4 pins, and a set of rings

Part #VW103T4SP JE
